Render Stack of Images

In this tutorial, you will learn how to render a stack of images.

Preface

In order to render a set of images we need:

• run initializers for the libraries
• an element (HTMLDivElement) to use as the container for the viewport
• the path to the images (imageIds).

Implementation

We have already stored images on a server for the purpose of this tutorial.

1. Initialize the libraries

import { init as coreInit } from '@cornerstonejs/core';
import { init as dicomImageLoaderInit } from '@cornerstonejs/dicom-image-loader';

await coreInit();
await dicomImageLoaderInit();

2. Create an HTML element and style it to look like a viewport. First let's create an HTML element and style it to look like a viewport.

const content = document.getElementById('content');
const element = document.createElement('div');

element.style.width = '500px';
element.style.height = '500px';

content.appendChild(element);

Next, we need a renderingEngine and a viewport to render the images.

const renderingEngineId = 'myRenderingEngine';
const renderingEngine = new RenderingEngine(renderingEngineId);

We can then create a viewport inside the renderingEngine by using the enableElement API. Note that since we don't want to render a volume for the purpose of this tutorial, we specify the type of the viewport to be Stack.

const viewportId = 'CT_AXIAL_STACK';

const viewportInput = {
  viewportId,
  element,
};

renderingEngine.enableElement(viewportInput);

RenderingEngine will handle creation of the viewports, and we can get the viewport object and set the images on it, and choose the index of the image to be displayed.

info

The imageIds that we use here are generated using the createImageIdsAndCacheMetaData function.

const imageIds = await createImageIdsAndCacheMetaData({
  StudyInstanceUID:
    '1.3.6.1.4.1.14519.5.2.1.7009.2403.334240657131972136850343327463',
  SeriesInstanceUID:
    '1.3.6.1.4.1.14519.5.2.1.7009.2403.226151125820845824875394858561',
  wadoRsRoot: 'https://d14fa38qiwhyfd.cloudfront.net/dicomweb',
});

const viewport = renderingEngine.getViewport(viewportId);

viewport.setStack(imageIds, 60);

viewport.render();

Tip

Since imageIds is an arrays of imageId, we can set which one to be displayed using the second argument of setStack.

Final code

Final code

import { RenderingEngine, Enums, init as coreInit } from '@cornerstonejs/core';
import { init as dicomImageLoaderInit } from '@cornerstonejs/dicom-image-loader';
import { createImageIdsAndCacheMetaData } from '../../../../utils/demo/helpers';

const content = document.getElementById('content');
const element = document.createElement('div');

element.style.width = '500px';
element.style.height = '500px';

content.appendChild(element);
// ============================= //

/**
 * Runs the demo
 */
async function run() {
  await coreInit();
  await dicomImageLoaderInit();

  // Get Cornerstone imageIds and fetch metadata into RAM
  const imageIds = await createImageIdsAndCacheMetaData({
    StudyInstanceUID:
      '1.3.6.1.4.1.14519.5.2.1.7009.2403.334240657131972136850343327463',
    SeriesInstanceUID:
      '1.3.6.1.4.1.14519.5.2.1.7009.2403.226151125820845824875394858561',
    wadoRsRoot: 'https://d14fa38qiwhyfd.cloudfront.net/dicomweb',
  });

  const renderingEngineId = 'myRenderingEngine';
  const renderingEngine = new RenderingEngine(renderingEngineId);

  const viewportId = 'CT_AXIAL_STACK';

  const viewportInput = {
    viewportId,
    element,
    type: Enums.ViewportType.STACK,
  };

  renderingEngine.enableElement(viewportInput);

  const viewport = renderingEngine.getViewport(viewportId);

  viewport.setStack(imageIds, 60);

  viewport.render();
}

run();

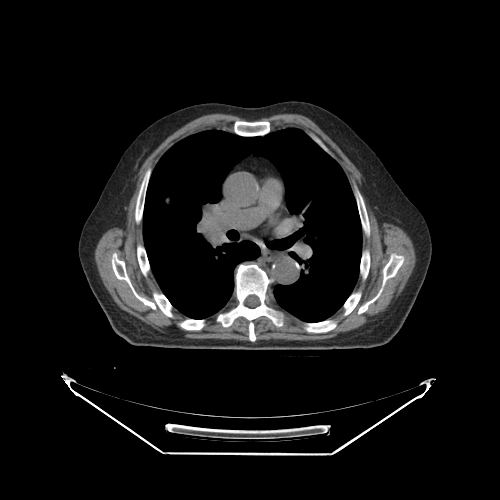

You should see the following:

Read more

Learn more about:

• imageId
• rendering engine
• viewport

For advanced usage of Stack Viewport, please visit StackViewport API example page.

Tip

• Visit Examples page to see how to run the examples locally.
